Description

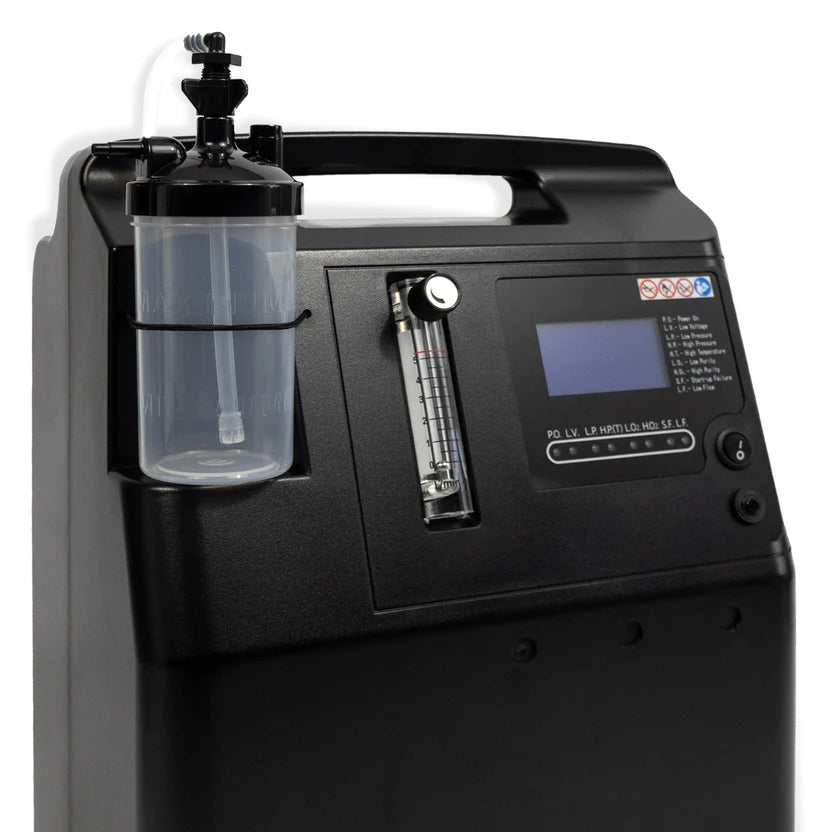

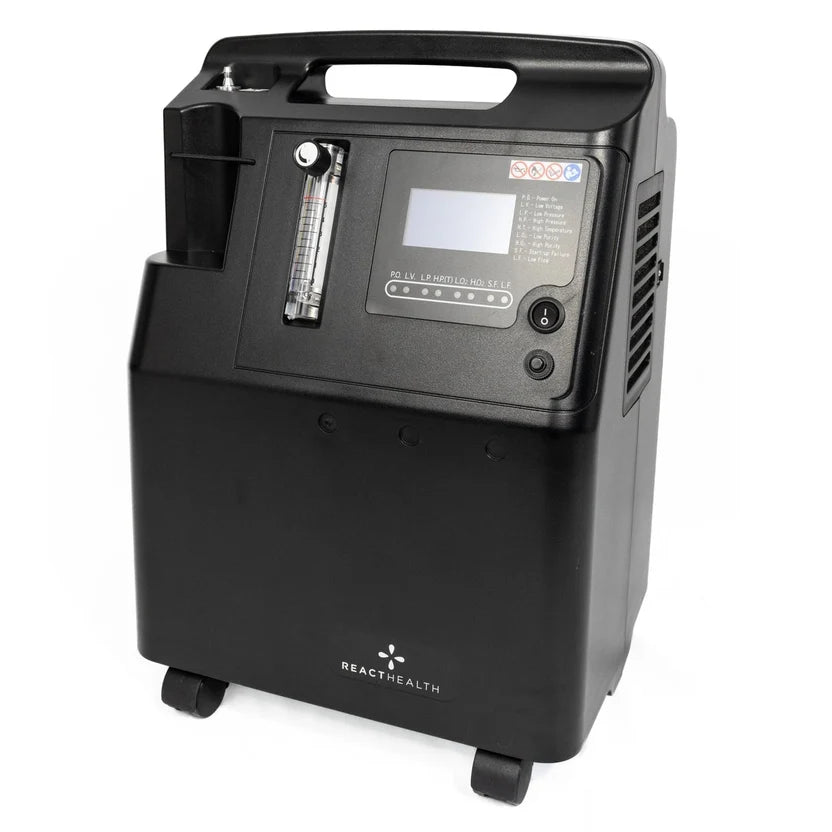

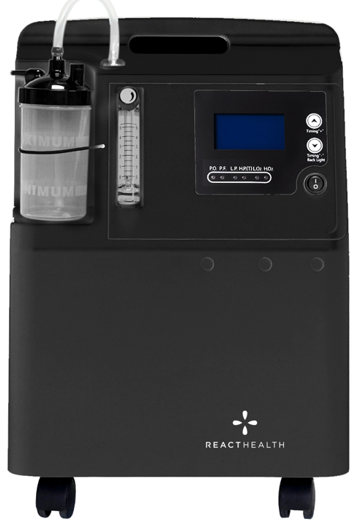

The New Phoenix 5L Oxygen Concentrator is a Compact, lightweight, and quiet design for discreet, non-intrusive therapy Low power consumption helps reduce costs to support budget-conscious care Integrated internal fire break valve for added safety
BENEFITS
Reliable performance with patented air separation control system.
Low running temperatures reduce wear on valves and sieve beds to extend life.
Intelligent design with air intake from high on the side and exhaust out the bottom helps prevent recirculation of purged gas.
Easy access to flowmeter and resettable circuit breaker.
Integrated internal fire break valve for added safety.
Compact, lightweight, and quiet design for discreet, non-intrusive therapy.
SERVICEABILITY
Easy access to internal components by removing just 5 screws— unit remains upright during service.
Operable without the shroud to simplify troubleshooting.
Comprehensive troubleshooting guide designed to minimize repair time and ensure only required parts are replaced.
SPECS
Flow rate (L/min) 0.5 - 5.0
Oxygen Concentration 93% +/- 3%
Rated power 328W
Voltage (V/Hz) AC120V / 60
Sound pressure level <49.5 dBA @ 3LPM
Net weight 35 lbs
Dimensions 20 x 13.7 x 11 inches
Warranty 3 Years
